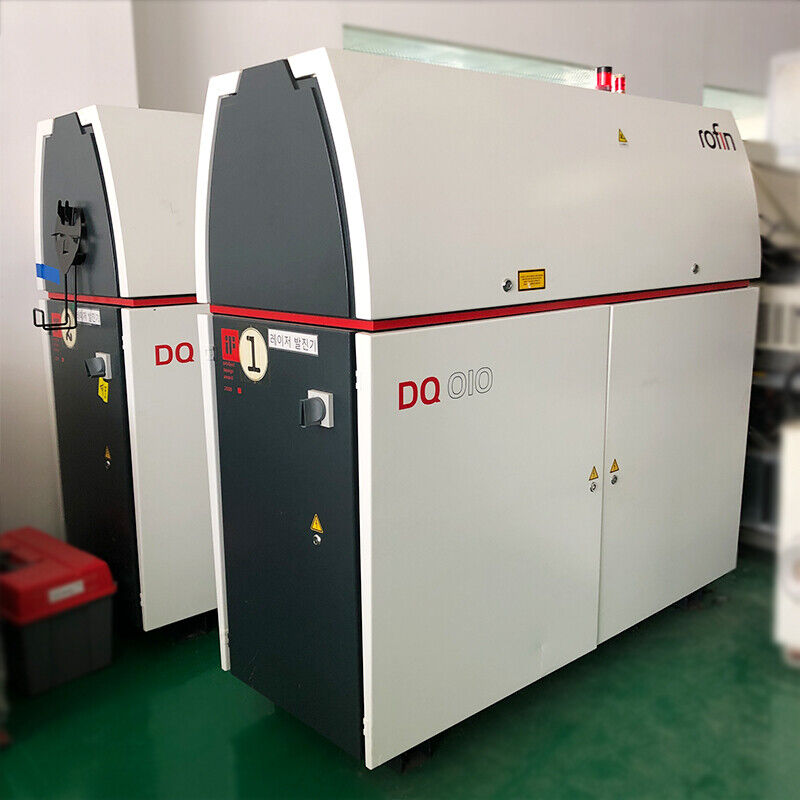

Rofin-Sinar DQ010 1kW Solid-State Laser

Description

Rofin-Sinar DQ010 1kW Solid-State Laser

ROFIN SINAR DQ 010 is a CW diode-pumped Q-switched laser that features a single emitter of an Nd:YVO4 (Neodymium-doped yttrium orthovanadate) crystal. It has an emission wavelength of 1064 nm, produces a maximum power output of 120 W, and has an emission pulse duration of 10ns. The laser’s optical cavity design uses a three-mirror configuration that produces a wavelength-stabilized output beam of up to 1 mm in diameter. Additionally, the laser has a beam divergence of less than 1 mrad and a power-to-pulse stability of better than 5%. The laser is designed for use in both industrial and scientific applications, including cutting and welding, light engraving, and other processes. It hosts a number of advanced features, such as internal and external modulation capability, pulse rate control, diode temperature compensation, burst triggering, pulse-on-demand operation, and a waveform generator. In addition, it works with compressed air or N2 gas cooling to reduce overall operating costs. The laser is also equipped with a host of safety features. The power supply is UL certified and contains protection against reflected pulses and thermal shut down. Additionally, the laser comes with an emergency shutdown switch for use in hazardous work areas. The laser has a wide range of performance advantages that make it a great choice for many applications. It offers a very low noise modulation rate of up to 1 millisecond, and its output power is highly stable and reactive to external influences. In addition, the laser’s computer-controlled power supply ensures a very high level of process control and excellent output beam quality. The pulsed output can also be adjusted in order to precisely match specific workpiece requirements. Overall, DQ 010 is an advanced, high-performance laser with an unsurpassed level of quality and reliability. It provides an ideal combination of efficiency, precision, and control, making it an excellent choice for various industrial and scientific applications.

Adding to the high-power DQ series of Q-switched solid-state lasers, the DQ 010 from Rofin-Sinar Laser GmbH delivers 1 kW of output power and increased pulse-peak performances that are 1000 times higher than CW powers. The instrument can be integrated with beam switches or power splitter modules, enabling the use of one beam source in several production lines. It can be coupled with fibre optics of 600 or 800 µm, and each is equipped with an optical attenuator for constant pulse energy and long-term stability control. It is suitable for surface applications including ablation, cleaning and insulation.
