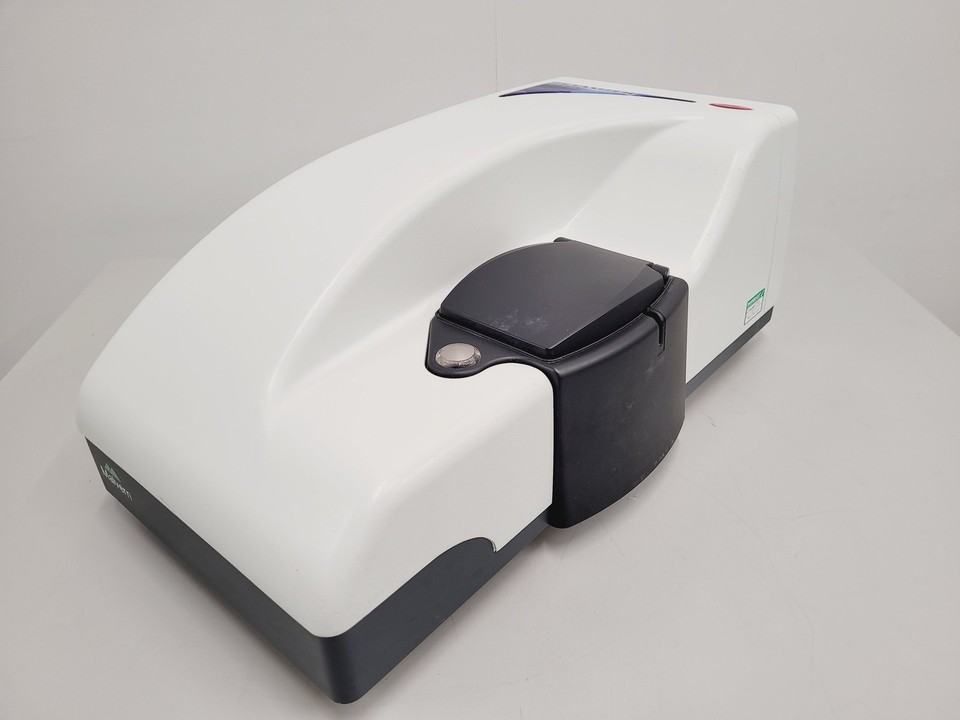

Malvern Instruments Zetasizer Nano-ZS ZEN3600 Particle Sizer Lab

Description

Malvern Instruments Zetasizer Nano-ZS ZEN3600 Particle Sizer Lab

The Malvern Instruments Zetasizer Nano ZS, ZEN3600 provides dynamic light scattering  (DLS) for the measurement of the size of colloids, nanoparticles and molecules, without requiring agitation to make the sample suitable for analysis. From the size, an estimate of the molecular weight can be made, which has the benefit of being faster to confirm oligomeric state than size exclusion chromatography.

Features:

• Little or no dilution required to simplify sample preparation
• Wide range of sample suitability from nanoparticles to emulsions and macromolecules
• MPT-2 Autotitrator to automate pH and ionic concentration trends, improving productivity
• Elimination of cross-contamination using disposable cells to improve accuracy
• Data assessment using quality report and ‘Expert advice’ system
• Can be used as a chromatography detector for on-line size measurement.
• NIBS optics ensures exceptional performance
• Automation of temperature trends

Specifications:

• Parameters measured
  Temperature control range: 0ºC to 90ºC +/- 0.1ºC
  Condensation control: Purge using dry air
  Standard laser: 4mW, 633nm
  Correlator:  25ns to 8000s, max 4000 channels
• Size
  Absolute sensitivity (Toluene kcps): 150
  Range (Maximum diameter): 0.3nm – 10 microns
  Min sample volume: 12μL
  Min concentration, protein: 0.1mg/mL 15kDa protein
  Min concentration, forward angle: 10mg/mL 66kDa protein
  Max concentration: 40% w/v
  Measurement angles: 13° + 173°
  Analysis algorithms: General purpose NNLS, multiple
  narrow modes, protein
• Zeta potential
  Sensitivity: 10mg/mL 66kDa protein
  Zeta potential range: > +/-500mV
  Mobility range: > +/- 20 μ.cm/V.s
  Maximum sample concentration: 40% w/v
  Minimum sample volume (using diffusion barrier): 20μL
  Maximum sample conductivity: 200mS/cm 200mS/cm
  Signal processing: M3-PALS
• Molecular weight
  Molecular weight range (estimated from DLS): <1000Da – 2 x 107
  Molecular weight range (Debye plot): <1000Da – 2 x 107 Da
  Dimensions: 12.6″ W x 23.6″ D x 10.2″ H (32 x 60 x 26 cm)
  Weight: 41.8 lbs (19 kg)
