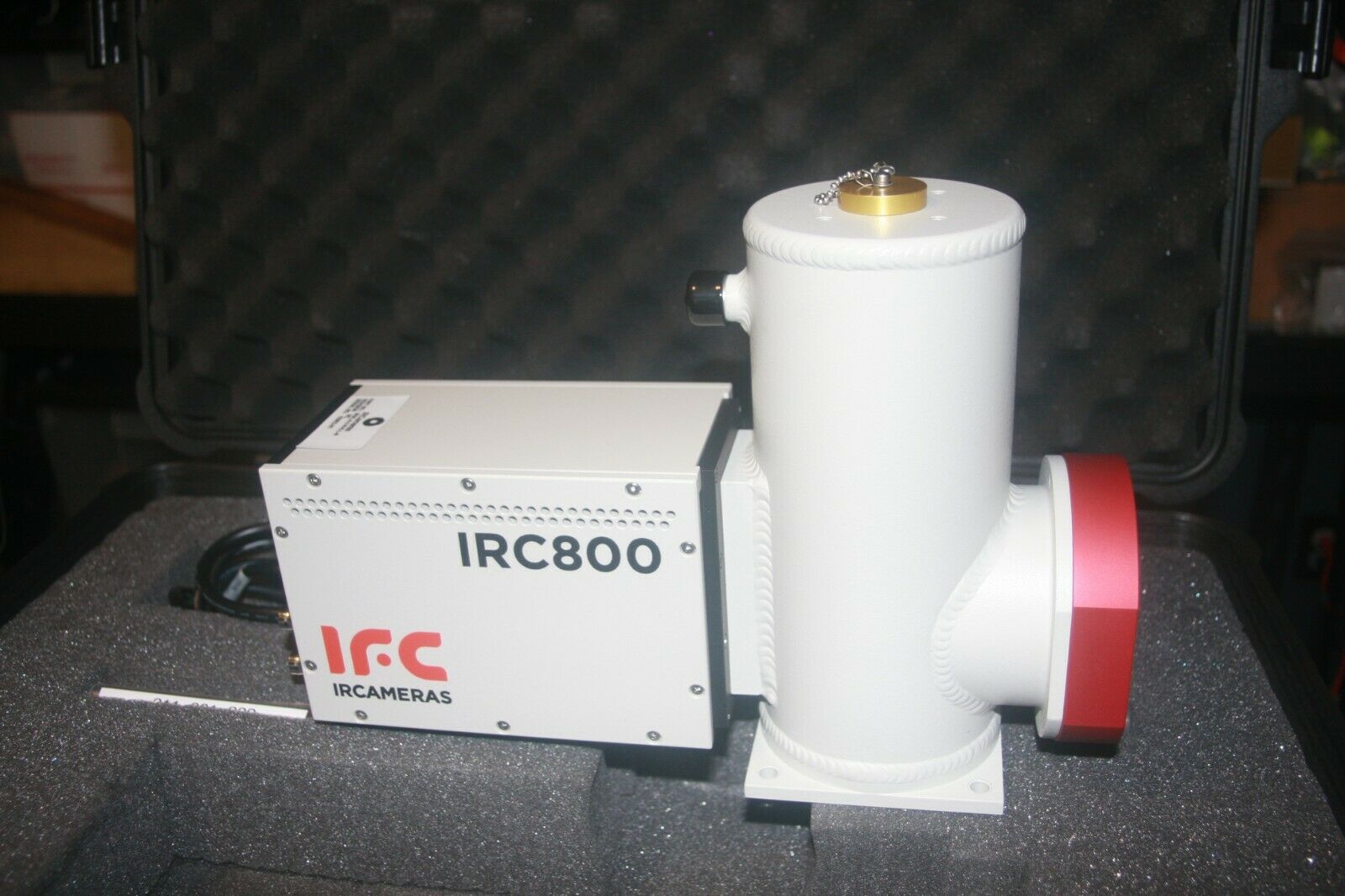

IRC800 Series IRC806 MWIR InSB Infrared LN Cooled IRCAMERA

Description

IRC800 Series IRC806 MWIR InSB Infrared LN Cooled IRCAMERA

IRCameras’ MWIR InSb IRC800 series cameras utilize the most advanced infrared focalplane technology available today to offer the ultimate in flexibility for research scientists. The IRC800 series of high performance infrared cameras provide the superior performance of an InSb sensor with a choice of detector resolutions. Unmatched sensitivity, ultra low noise, no blooming and no crosstalk make the IRC800 series ideal for exceptionally demanding scientific, industrial and military applications.
IRC’s 800 Series Mid Wave Infrared camera operators can vary integration times, frame rates and cold filters to meet the most precise testing requirements. A 1/3-liter LN2 pour-filled dewar assembly maintains temperature for up to 20 hours unpowered and 9 hours powered. An optional motorized cold filter wheel enables simultaneous installation and external selection of up to 4 cold filters, ideal for analyzing various sub bands between 1 and 5 µm.
