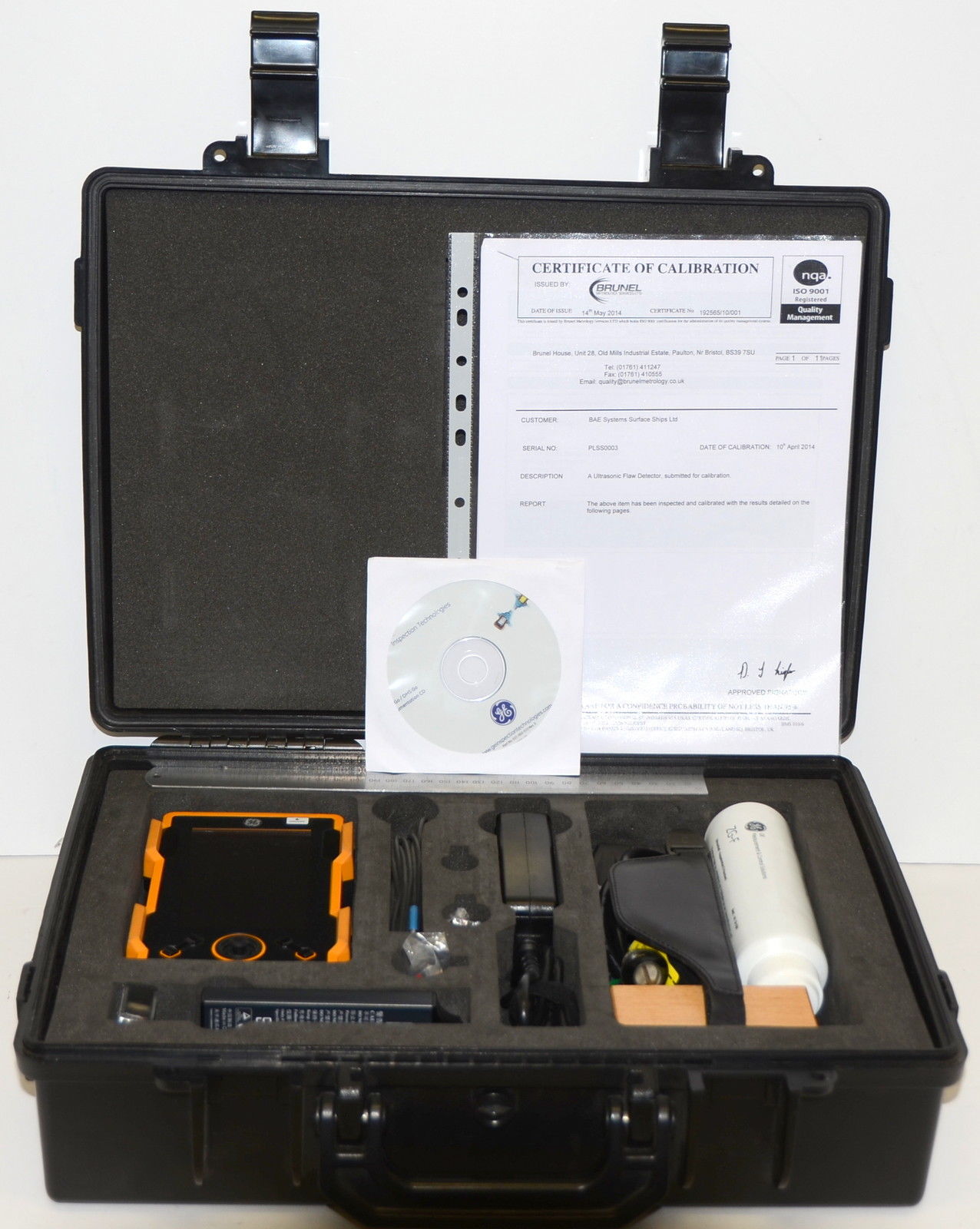

GE Inspection USM DMS Go Ultrasonic Flaw Detector

Description

GE Inspection USM DMS Go Ultrasonic Flaw Detector

The USM Go+ has been designed to provide flaw detection capability in inspection situations through-out the industrial and process spectrum, from aero-space to power generation and from the automotive sector to the oil and gas industry.

Weld Inspection:

• Trigonometric projections with curvature correction.
• AWS D1.1 sizing
• DAC/TCG
• DGS
• Color Leg

Inspection of Forgings and Castings:

• Manual PRF adjustment
• Phantom echo indicator
• DGS
• Backwall Echo Attenuator (BEA)

Inspection of rails:

• High PRF (up to 2000 Hz)
• Lightweight 850g (1.87 lb.)
• Small size and ergonomics

Inspection of Composites:

• RF Display
• 2 gates with B-start triggered with echo in gate A
• TCG correction with high slope 120 dB/ µs
• Reflector depth indicated in layer
