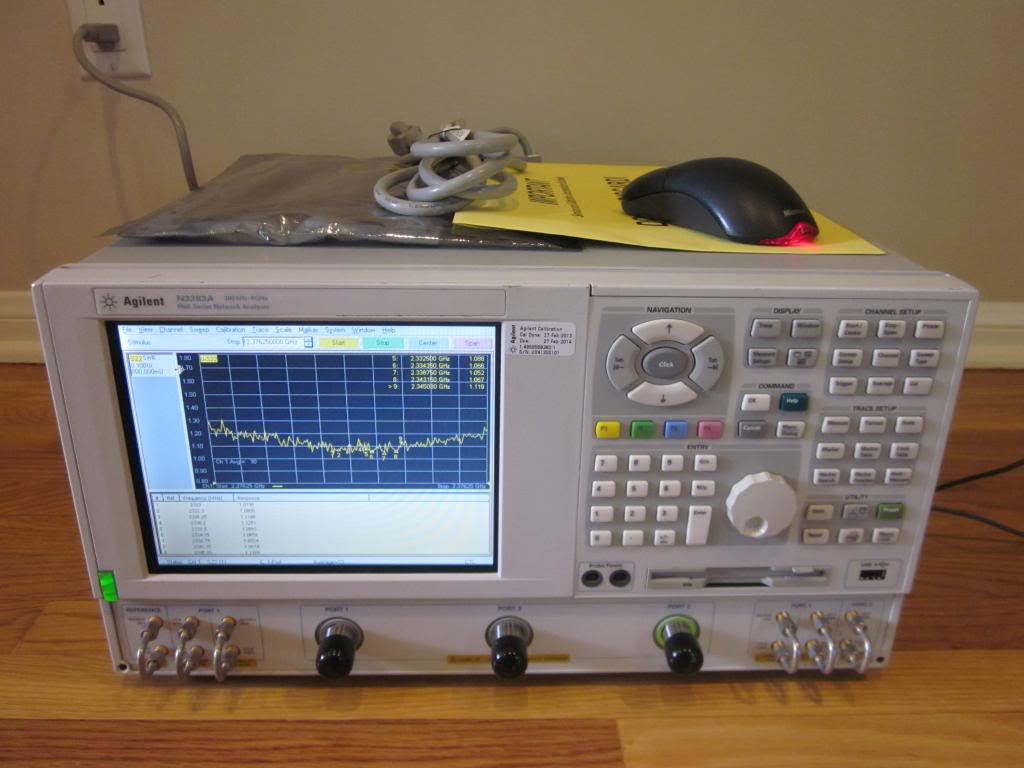

Agilent N3383A 300 kHz – 9 GHz Vector Network Analyzer

Description

Agilent N3383A 300 kHz – 9 GHz, 3 Port, 4 Reciever RF Vector Network Analyzer

with options 10 (Time Domain), 14 (Configurable Test Set – to measure high-power devices and devices for high dynamic range), 1E1 (Extended Power Range) and 1E5 (High Stability Time Base).

The N3383A Vector Network Analyzer is a member of the PNA Series network analyzer platform and provides the combination of speed and precision for the demanding needs of today’s high-performance component test requirements. The N3383A is a three-port network analyzer that offers many optional capabilities to custom fit the analyzer to meet your application requirements. Full three-port error correction ensures outstanding accuracy. The PNA Series features sixteen independent measurement channels and a built-in hard drive.

Features:

• 300 kHz to 9 GHz
• 128 dB dynamic range at test port
• 143 dB dynamic range with direct receiver access
• 35 µs/point sweep speed
• USB controlled electronic calibration (ECal)
• COM/DCOM and SCPI programming
